Advanced Settings

Filter Design & Styling
Updated Nov 8, 20262 min read

Each filter in Form Style also has an Advanced Settings block, below its optional settings. These options fine-tune one filter. Most shops can leave them alone, but they help with long lists and special designs. The settings available depend on the filter and style. (The separate tab called Advance Settings covers the whole plugin.)

CSS Class

For developers. It adds your own class name to this filter, so you can style it with custom CSS. Leave it empty if you do not write CSS.

Operator

Applies when a shopper picks two values in the same filter:

  • OR: shows products that have either value. It is the default and suits most filters.
  • AND: shows only products that have both. It can quickly leave shoppers with nothing, so use it with care.

Our guide to filter operators gives more examples.

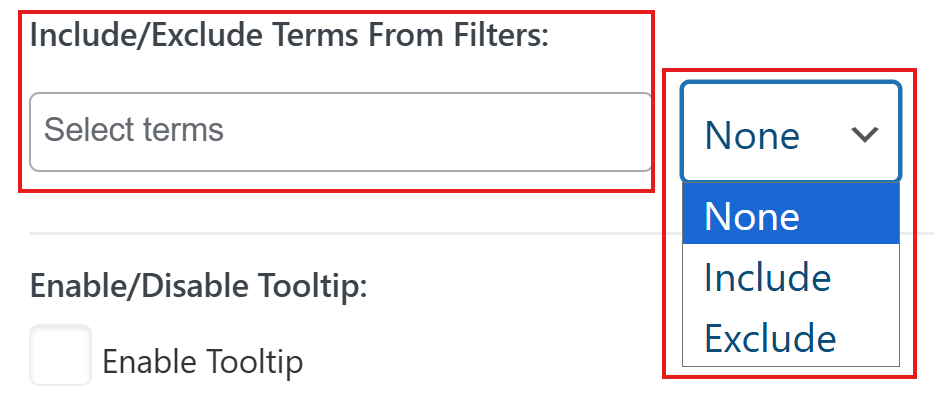

Include/Exclude Terms From Filters

Chooses which values appear:

  • None: all values appear.
  • Include: only the values you pick appear.
  • Exclude: the values you pick are hidden.

For example, exclude a category called “Uncategorized”.

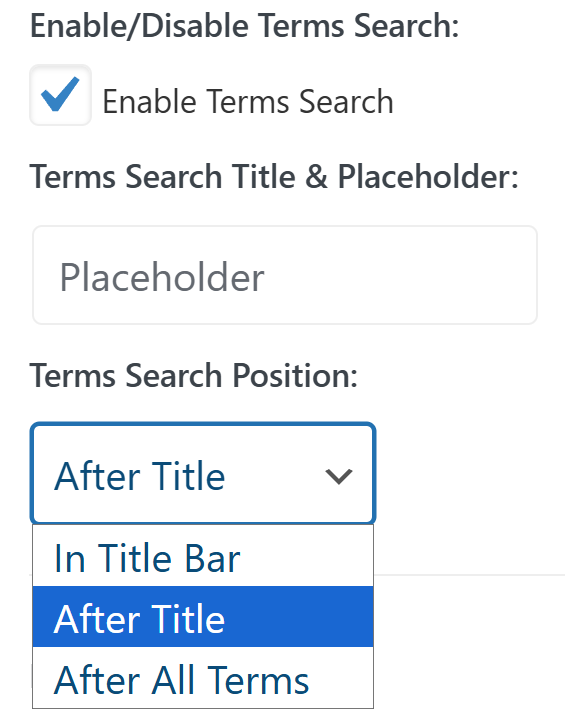

Adds a small search box inside the filter, for long lists such as brands:

  • Enable/Disable Terms Search: turns it on.
  • Terms Search Title & Placeholder: sets the hint inside the box.
  • Terms Search Position: After Title, After All Terms or In Title Bar PRO.
Terms search, layout and tooltip settings for a WooCommerce product filter

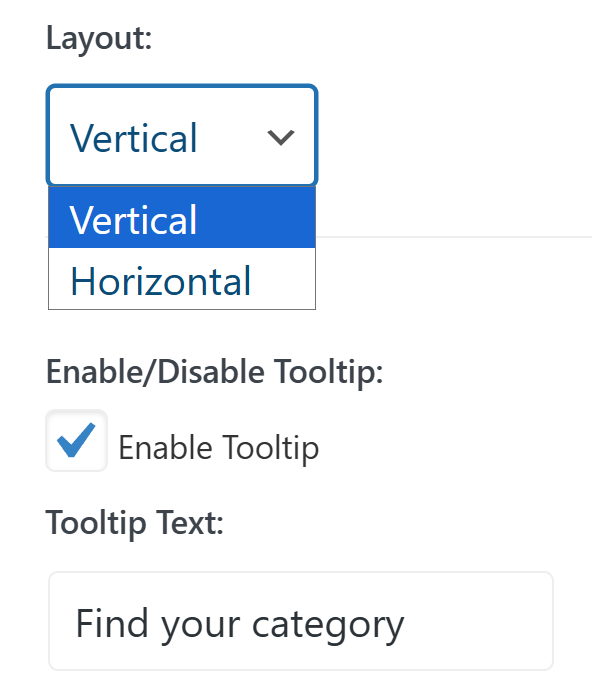

Layout and Number of Columns

These arrange the values inside the filter:

  • Layout: Vertical stacks values, and Horizontal lines them up.
  • Number of Columns: 1 to 4, shown when Layout is Horizontal. Two or three columns suit short values and logos.

Tooltip

Enable/Disable Tooltip adds a small help icon beside the filter’s heading. Type your message in Tooltip Text, such as “Sizes are in UK measurements”. Keep it to one short sentence.

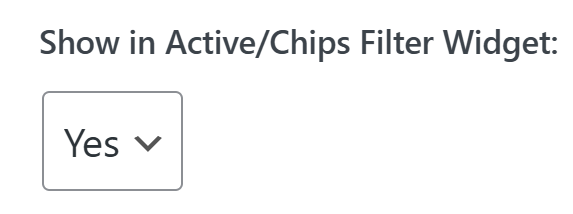

Show in Active/Chips Filter Widget

Decides whether this filter’s choices appear in the selected filters chips.

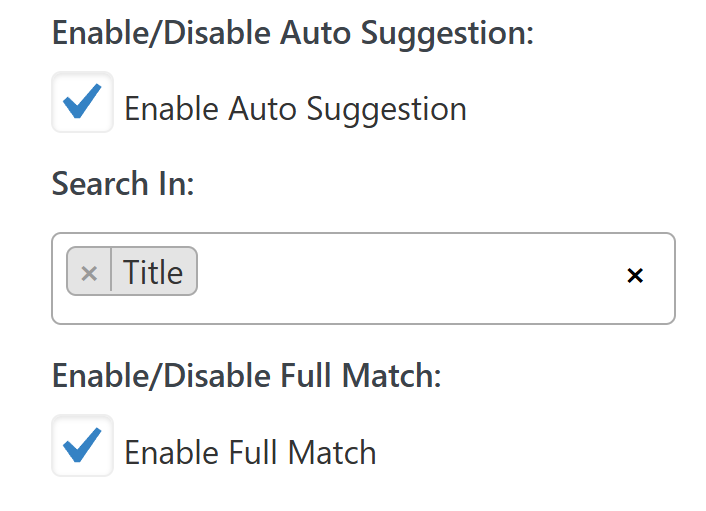

These appear when you configure Search Product, and our search settings guide explains them:

  • Enable/Disable Auto Suggestion PRO
  • Search In PRO
  • Enable/Disable Full Match

Click Save Changes when you finish.
